Uxcell M10 Serrated Flange Hex Lock Nuts, Carbon Steel Black Oxide Finished 100pcs

Product image 1
1 / 4

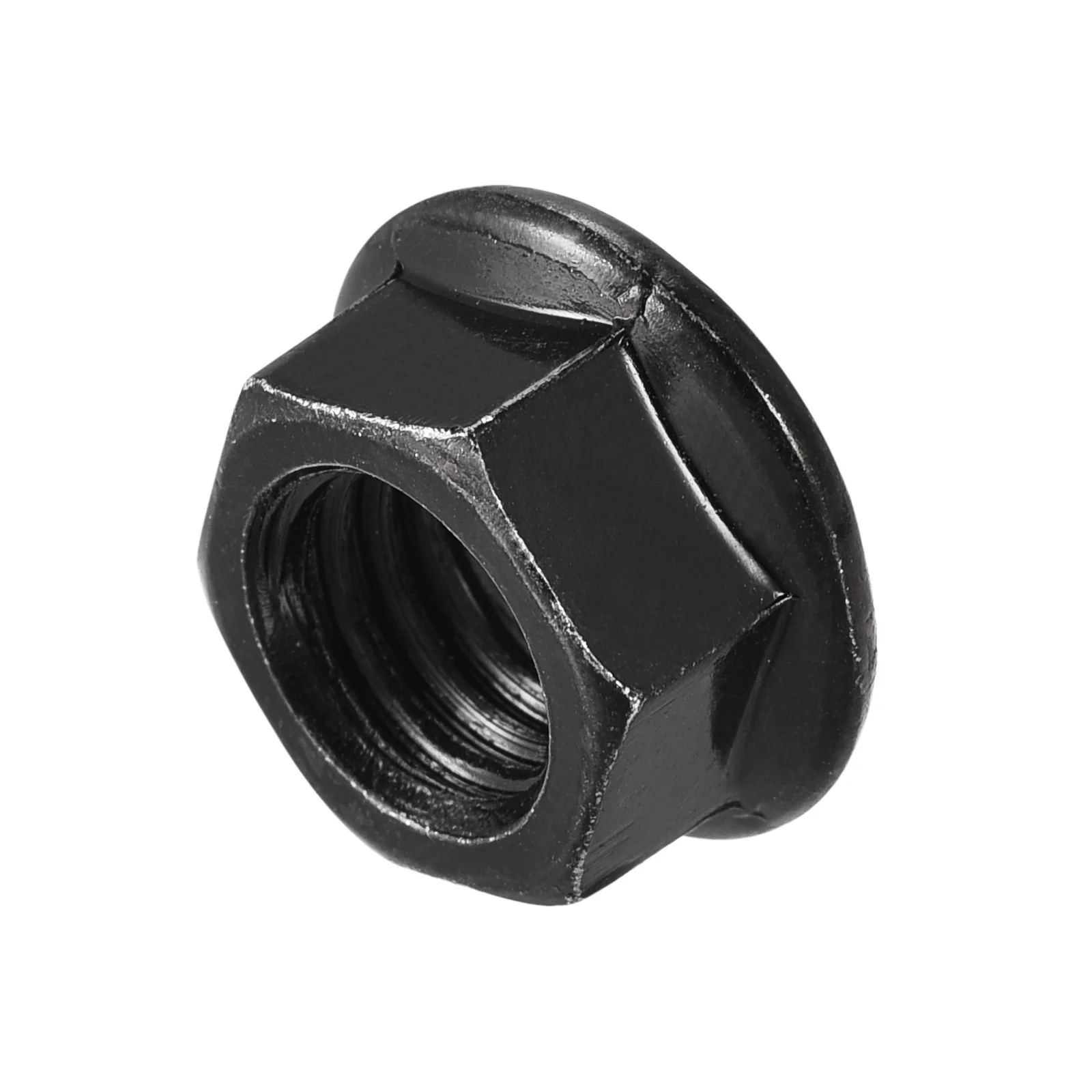

Uxcell M10 Serrated Flange Hex Lock Nuts, Carbon Steel Black Oxide Finished 100pcs

A flange nut is a nut that has a wide flange at one end that acts as an integrated, non-spinning washer. This serves to distribute the pressure of the nut over the part being secured, reducing the chance of breaking to the part and making it less likely to loosen as a result of an uneven fastening surface.
The flange may be serrated to provide a locking action. The serrations are angled such that they keep the nut from rotating in the direction that would loosen the nut. Because of the serrations, they cannot be used with a washer or on surfaces that cannot be scratched. The serrations help in avoiding the vibration of the nut and increase the holding power of the nut.

Specification:

Product Name: Hex Flange Nut

Material: Carbon Steel

Finish: Black Oxide

Main Color: Black

Thread Size: M10

Height: 8.6mm/0.34"

Hex Width: 13.8mm/0.54"

Flange Diameter: 18.2mm/0.72"

Thread Pitch: 1.5

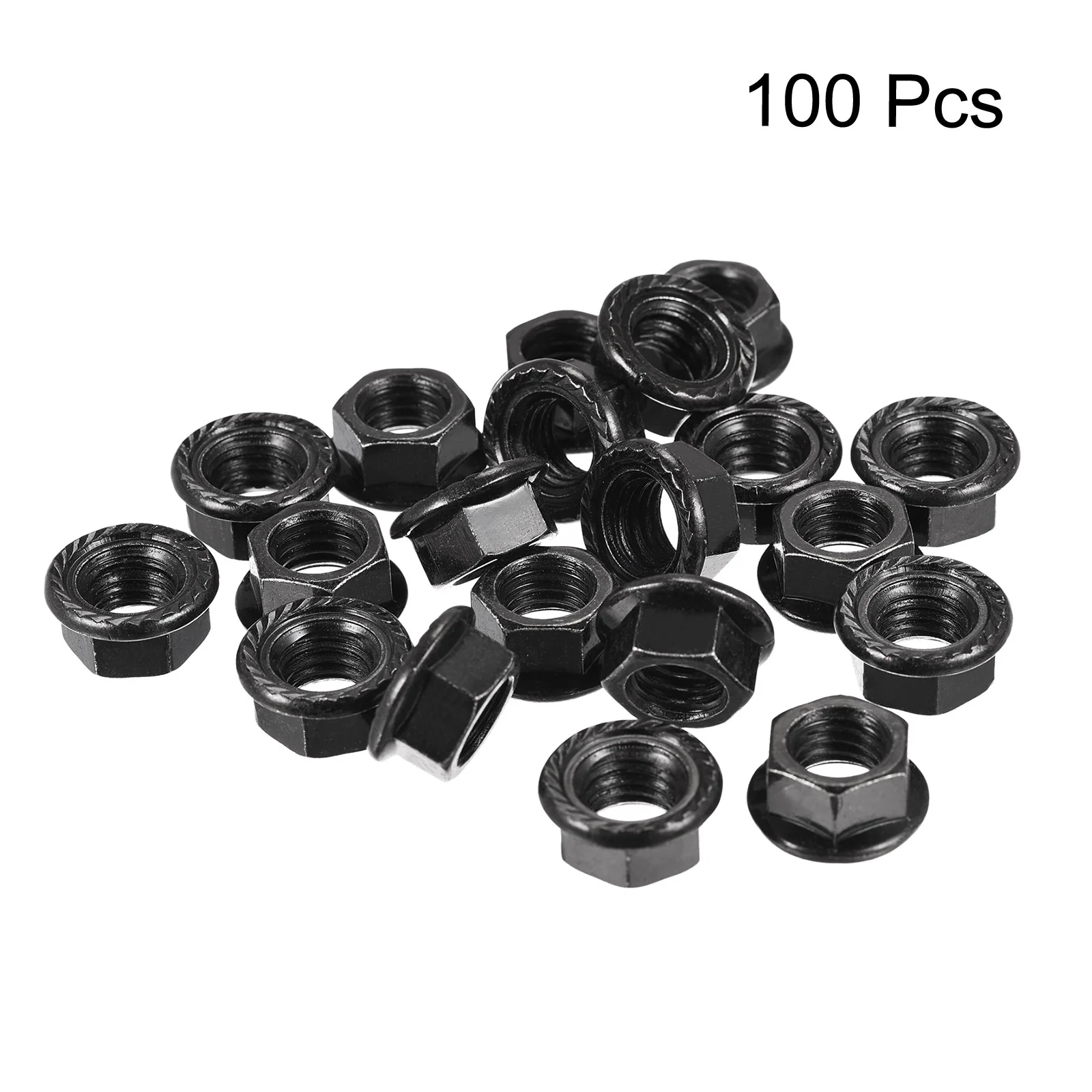

Package Content: 100pcs x Hex Flange Nut

$5.42

Original: $18.08

-70%
Uxcell M10 Serrated Flange Hex Lock Nuts, Carbon Steel Black Oxide Finished 100pcs

$18.08

$5.42

Product Information

Shipping & Returns

Description

A flange nut is a nut that has a wide flange at one end that acts as an integrated, non-spinning washer. This serves to distribute the pressure of the nut over the part being secured, reducing the chance of breaking to the part and making it less likely to loosen as a result of an uneven fastening surface.
The flange may be serrated to provide a locking action. The serrations are angled such that they keep the nut from rotating in the direction that would loosen the nut. Because of the serrations, they cannot be used with a washer or on surfaces that cannot be scratched. The serrations help in avoiding the vibration of the nut and increase the holding power of the nut.

Specification:

Product Name: Hex Flange Nut

Material: Carbon Steel

Finish: Black Oxide

Main Color: Black

Thread Size: M10

Height: 8.6mm/0.34"

Hex Width: 13.8mm/0.54"

Flange Diameter: 18.2mm/0.72"

Thread Pitch: 1.5

Package Content: 100pcs x Hex Flange Nut
