Self-tapping threaded inserts are widely used in household appliances, industries, construction machinery, engineering plastics, mechanical equipment, electronic products, aluminum die casting, aviation, automobile industry, rail car industry, ship industry, electronic communication, computers, and lighting, ship industry, and household appliances, etc.

Specification

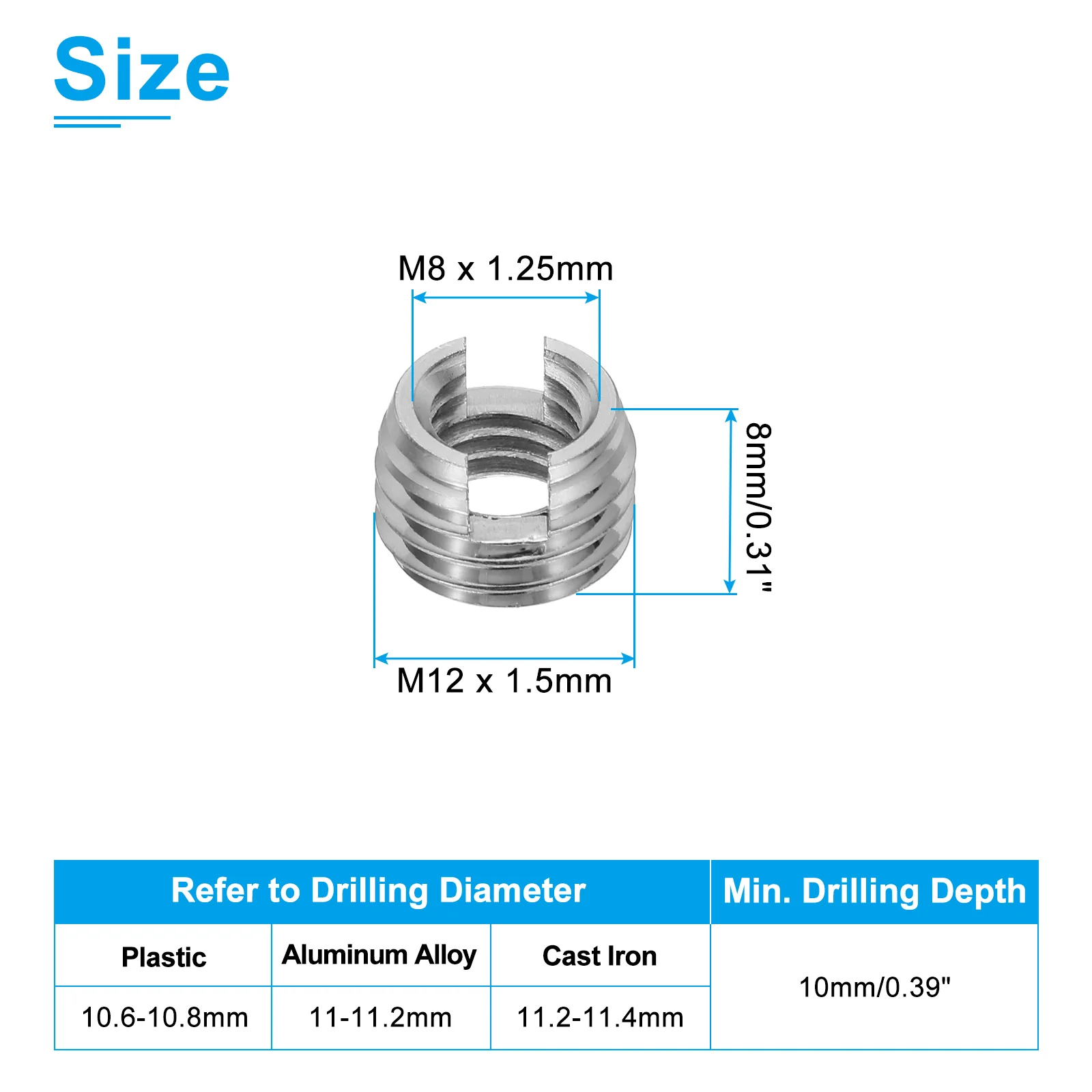

Inner Thread Size: M8 x 1.25mm(Dia.x Pitch)
Outer Thread Size: M12 x 1.5mm(Dia.x Pitch)
Thread Length: 8 mm/0.31 Inch
Min. Drilling Depth: 10mm/0.39 Inch
Refer to Drilling Diameter:10.6-10.8mm(Plastic), 11-11.2mm(Aluminum Alloy), 11.2-11.4mm(Cast Iron)
Material: 303 Stainless Steel
Color: Silver Tone
Package List: 20 Pcs x Self-Tapping Inserts(302 Type)

Advantage

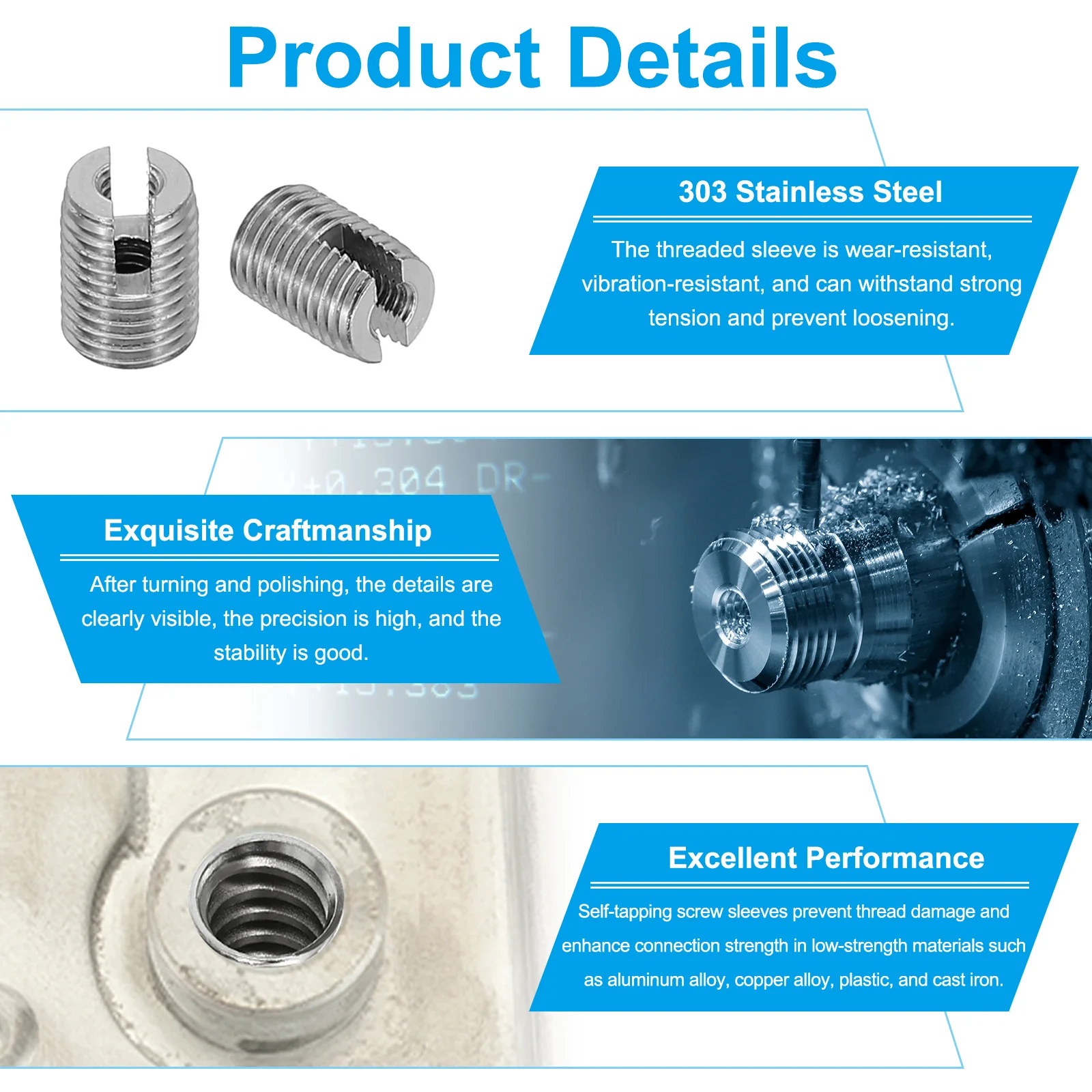

Constructed from stable 303 stainless steel, our threaded inserts are wear-resistant, rust-proof, and vibration-resistant, and can bear strong tension and prevent loosening. Widely used with low-strength materials such as plastic, aluminum alloy, cast iron, etc , or parts that require frequent removal which can avoid thread damage and improve connection strength.

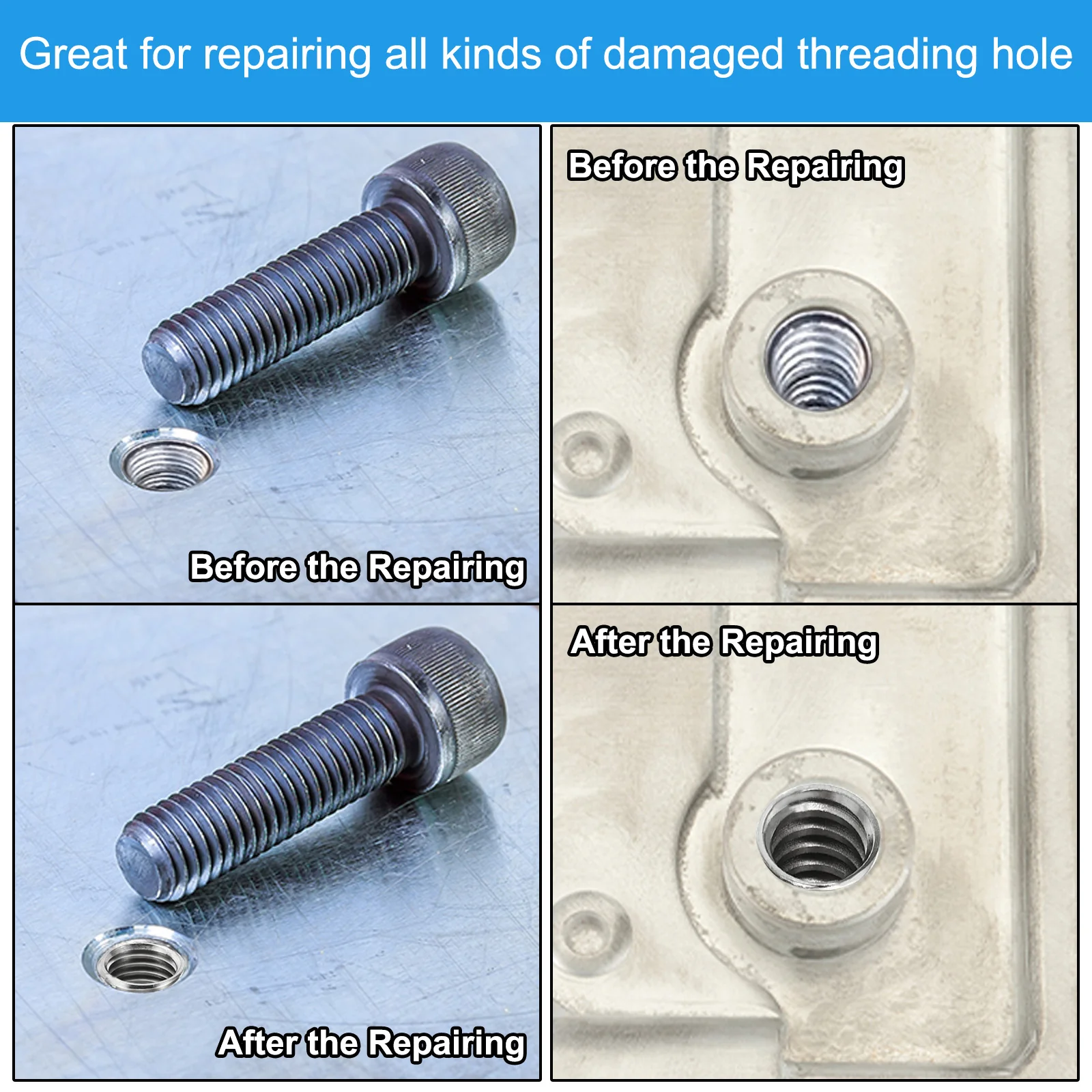

Our threaded inserts with self-tapping capability do not need to be tapped in advance. It can be used to repair damaged or oversized threaded holes and restore the original function of the threads.

Instruction
Easy to use. These self-tapping screw sleeves do not need to be tapped in advance, just directly screwed into a specific hole by using an assembly tool.

Note: Please check the size before purchasing.
