DC24V Worm Gear Motor, 16RPM 8mm D Shaft Speed Reduction
What is it?
A DC gear motor is a combination of a standard DC motor and a gearbox designed to reduce the motor's high-speed, low-torque output to a slower speed with higher torque. This makes it great for applications requiring controlled movement, power, and precision at lower speeds.
What will I get?
DC Worm Gear Motor

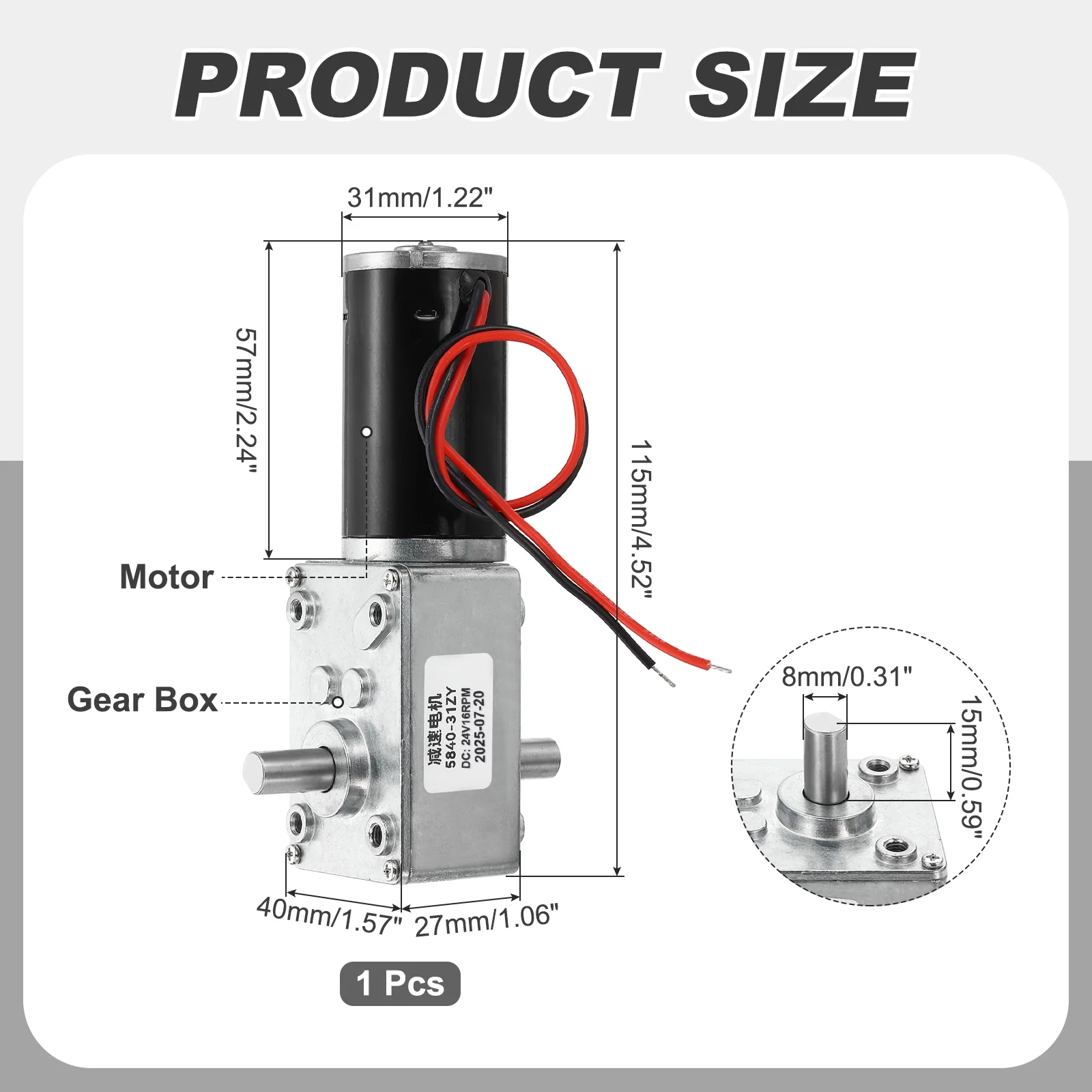

Total Size: 115 x 40 x 27 mm / 4.52 x 1.57 x 1.06 inch (L x W x H);
Gear Box Size: 58 x 40 x 27 mm / 2.28 x 1.57 x 1.06 inch (L x W x H);
Motor Size: 57 x 31 mm / 2.24 x 1.22 inch (D x H);
Shafts Size: 8 x 15 mm / 0.31 x 0.59 inch (D x L);

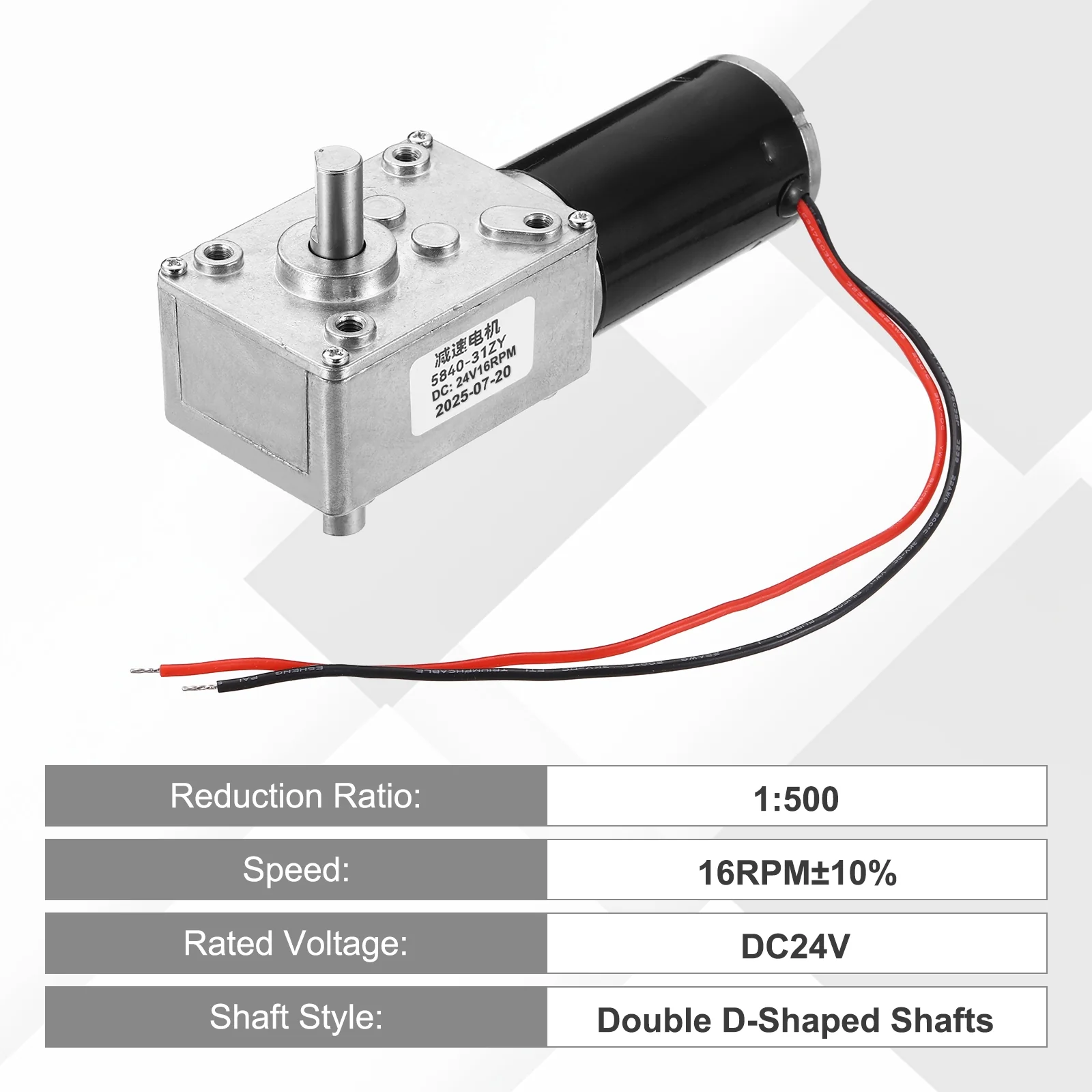

Reduction Ratio: 1:500;
Speed: 16RPM 10%;
Rated Voltage:DC24V;
In the package of: 1 Pcs x Worm Gear Motor
Are there any advantages of this product?
This D shaft self-locking worm gear motor supports bidirectional rotation and auto self locking when powered off, ensuring load stability. It delivers high torque at low speeds, eliminating external brakes while enabling safe, synchronized motion, very suitable for barbecue grill, range hood, remote controlled curtain, electronic motor, etc.
How to use it?
This gear motor supports reversible rotation, and changes the direction of rotation according to the positive and negative poles of the connection terminals. Fix the motor to the device, connect the power supply, and connect the load to the shaft to complete the installation.
What should I notice?
Please check the product specification information in advance and operate within voltage limits.
A DC gear motor is a combination of a standard DC motor and a gearbox designed to reduce the motor's high-speed, low-torque output to a slower speed with higher torque. This makes it great for applications requiring controlled movement, power, and precision at lower speeds.
