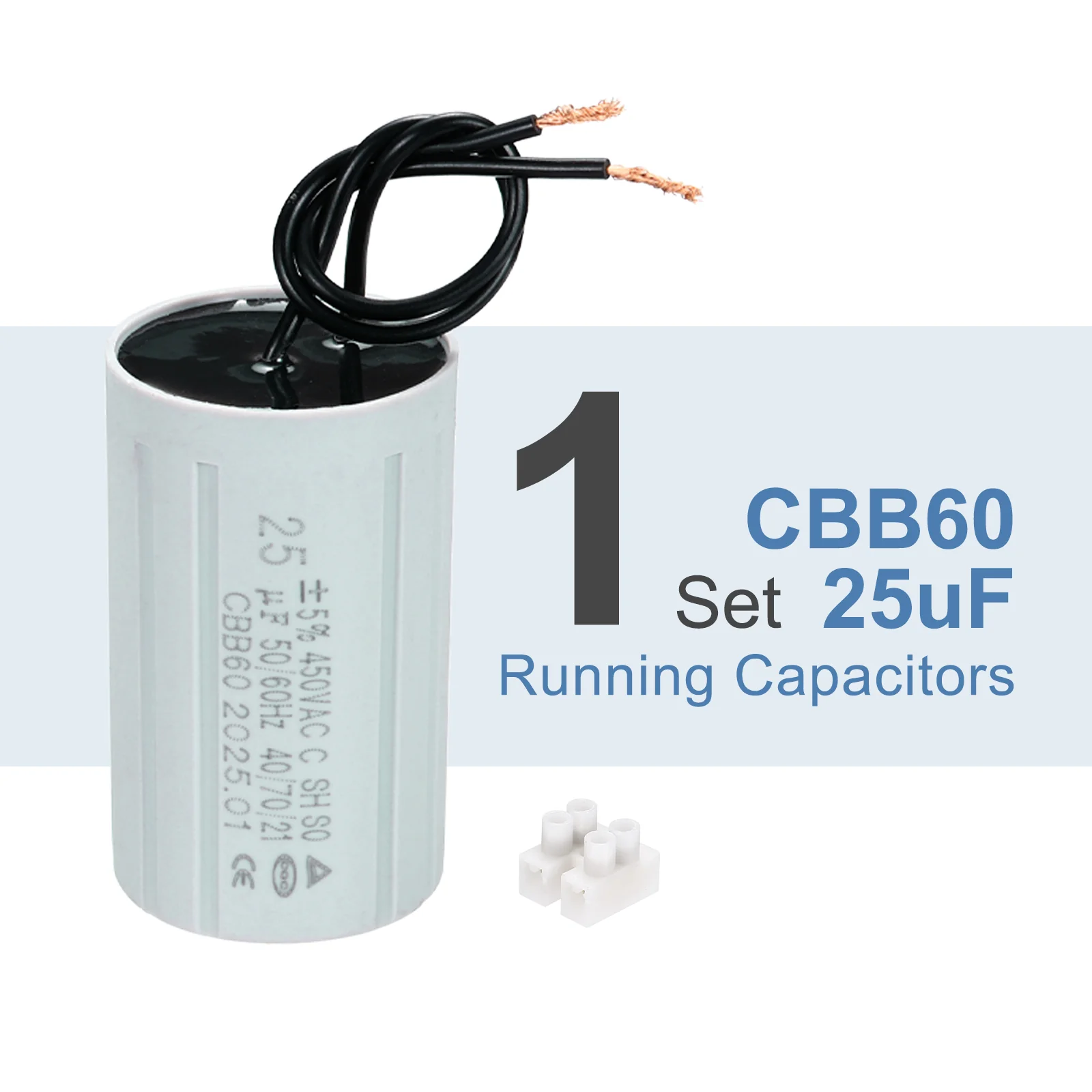

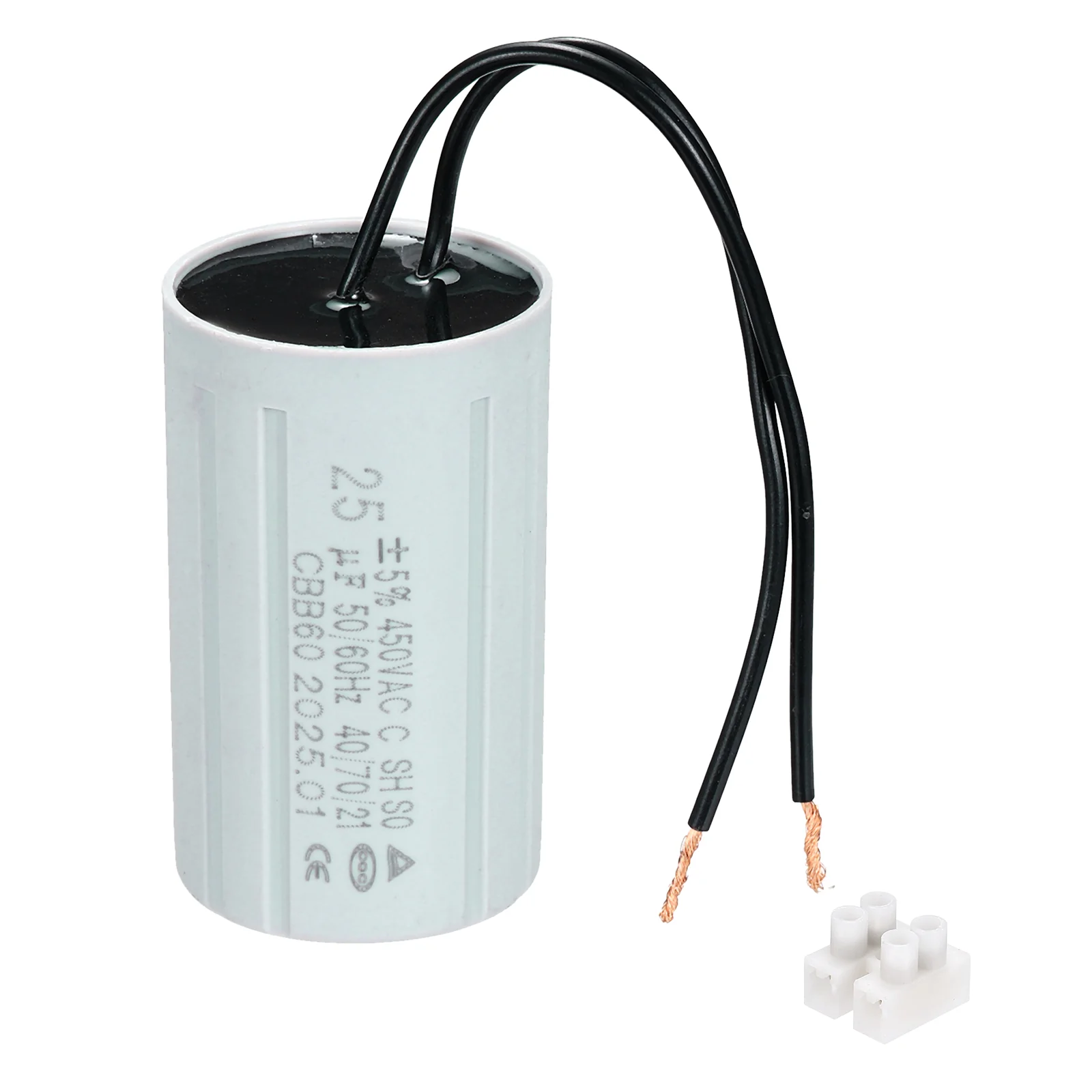

CBB60 25uF Running Capacitors, AC 450V 2 Wires 50/60Hz Cylinder 70x40mm for Water Pumps, Washing Machines Motor Start
1 / 5
CBB60 25uF Running Capacitors, AC 450V 2 Wires 50/60Hz Cylinder 70x40mm for Water Pumps, Washing Machines Motor Start
Suitable for the start-up of single-phase motors with frequency of 50Hz and 60Hz, such as air compressors, water pumps, pressure washers, air conditioners, washing machines, motors, generators, HVAC, fans, drills, splitters, saws, grinders, etc.
Specification:

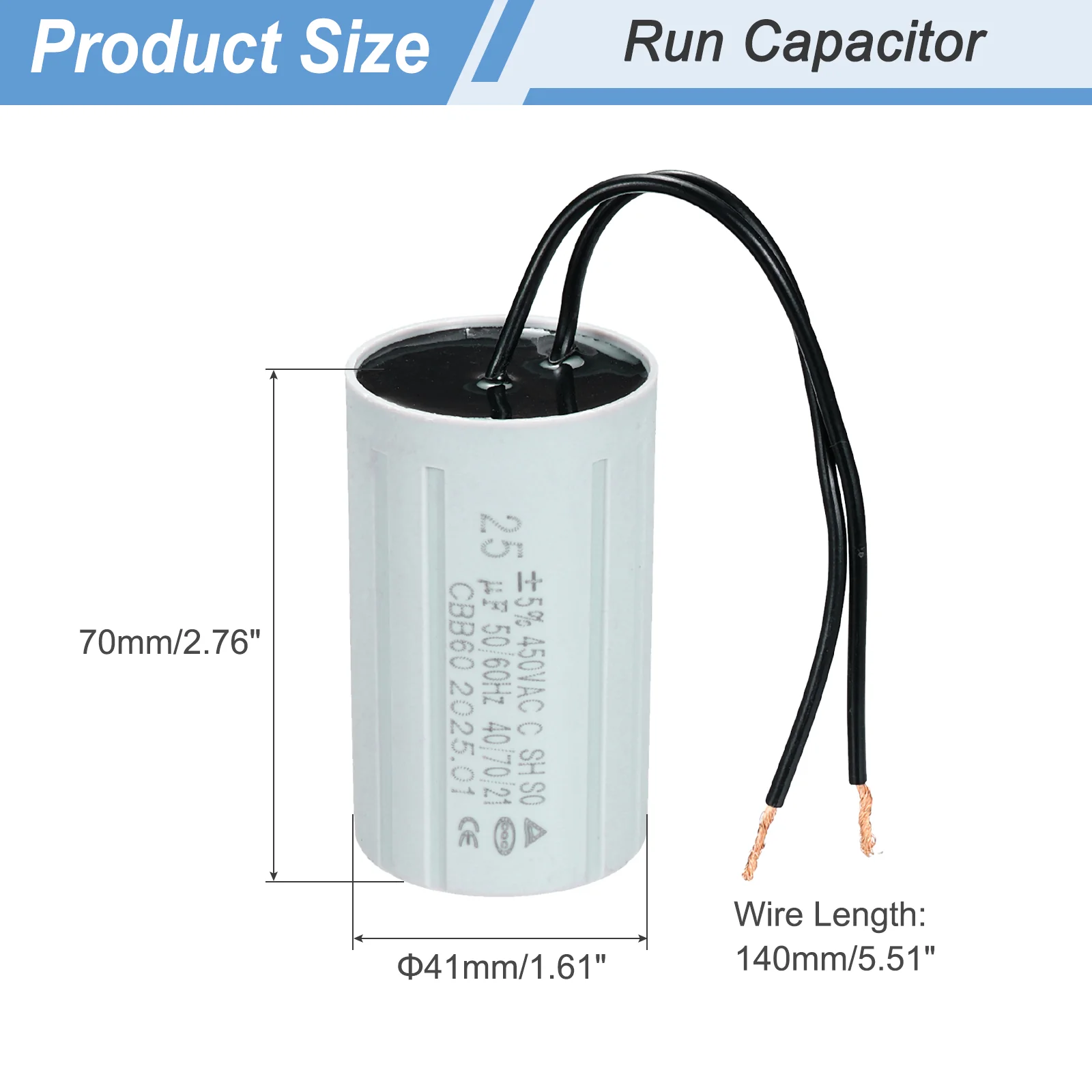

Model: CBB60; Material: Polypropylene Film Plastic Shell; Lead End: 2 Wires; Tolerance: ±5%; Rated Capacity: 25uF; Climatic Category: 40/70/21; Body Size: 70x40mm/2.76x1.57inch (L*D); Shell Color: Grey; Wire Length: 135mm/5.31inch; Pack of 1Set Run Capacitor(Inchlude 1xModel 10A two-position cross flame retardant terminal block)
Advantage:

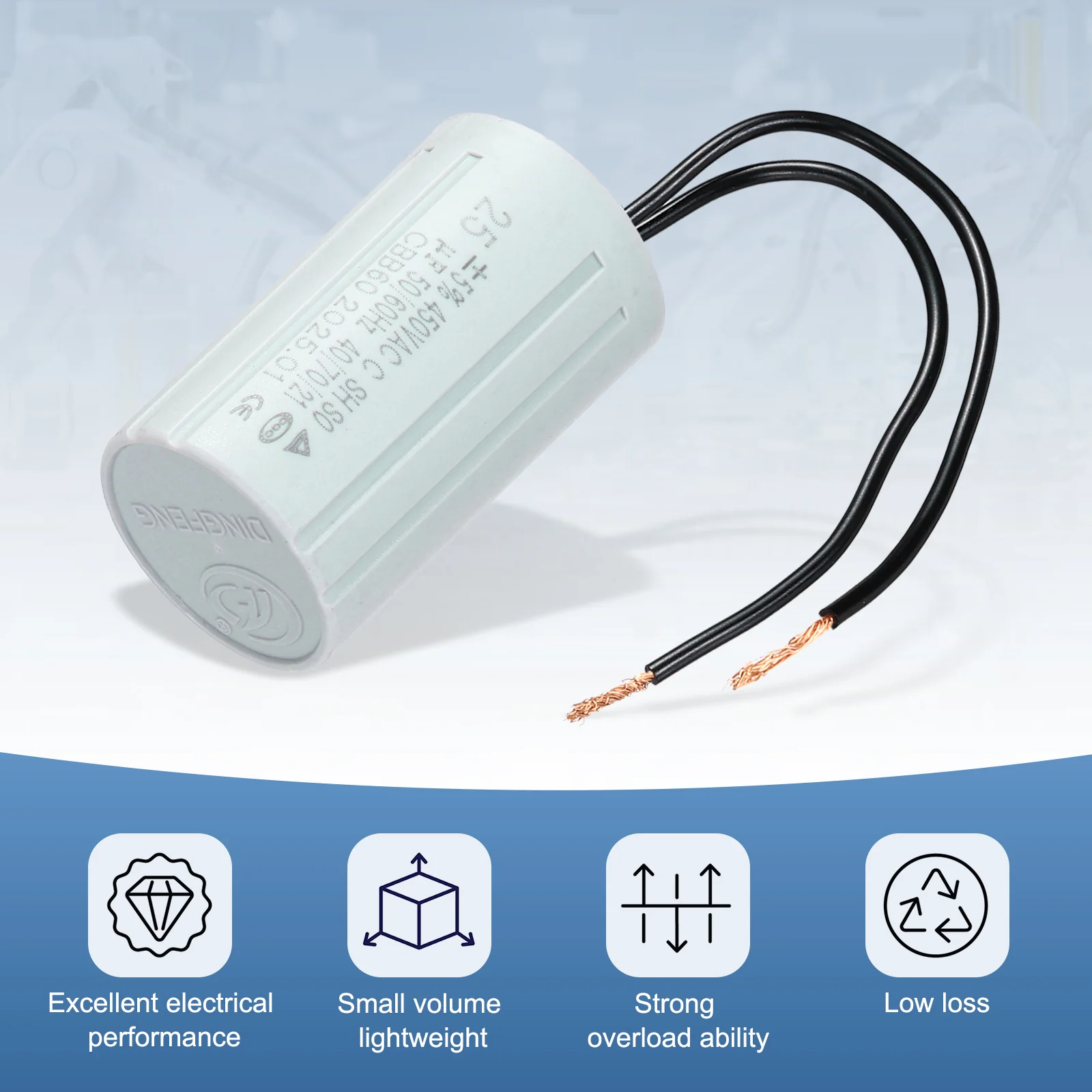

1.This CBB60 run capacitor has characteristics of small volume, lightweight, low loss, strong overload ability, excellent electrical performance, reliable insulation performance, and current with good impact resistance.
2.Model 10A two-position cross flame-retardant terminal block has flame-retardant properties, which can effectively reduce the risk of fire and improve the protection of electrical equipment. The terminal block is reasonably designed to ensure a firm and reliable connection between the wire and the equipment, avoiding poor contact or looseness.
Instruction:
Capacitance is not divided into positive and negative poles and can be connected at will. High stability, good heat dissipation effect under high temperature.
NOTE: Please pay attention not to over current or over voltage when using
Specification:
Model: CBB60; Material: Polypropylene Film Plastic Shell; Lead End: 2 Wires; Tolerance: ±5%; Rated Capacity: 25uF; Climatic Category: 40/70/21; Body Size: 70x40mm/2.76x1.57inch (L*D); Shell Color: Grey; Wire Length: 135mm/5.31inch; Pack of 1Set Run Capacitor(Inchlude 1xModel 10A two-position cross flame retardant terminal block)
Advantage:
1.This CBB60 run capacitor has characteristics of small volume, lightweight, low loss, strong overload ability, excellent electrical performance, reliable insulation performance, and current with good impact resistance.
2.Model 10A two-position cross flame-retardant terminal block has flame-retardant properties, which can effectively reduce the risk of fire and improve the protection of electrical equipment. The terminal block is reasonably designed to ensure a firm and reliable connection between the wire and the equipment, avoiding poor contact or looseness.
Instruction:
Capacitance is not divided into positive and negative poles and can be connected at will. High stability, good heat dissipation effect under high temperature.
NOTE: Please pay attention not to over current or over voltage when using
$2.54
Original: $8.46
-70%CBB60 25uF Running Capacitors, AC 450V 2 Wires 50/60Hz Cylinder 70x40mm for Water Pumps, Washing Machines Motor Start—
$8.46
$2.54Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Suitable for the start-up of single-phase motors with frequency of 50Hz and 60Hz, such as air compressors, water pumps, pressure washers, air conditioners, washing machines, motors, generators, HVAC, fans, drills, splitters, saws, grinders, etc.
Specification:
Model: CBB60; Material: Polypropylene Film Plastic Shell; Lead End: 2 Wires; Tolerance: ±5%; Rated Capacity: 25uF; Climatic Category: 40/70/21; Body Size: 70x40mm/2.76x1.57inch (L*D); Shell Color: Grey; Wire Length: 135mm/5.31inch; Pack of 1Set Run Capacitor(Inchlude 1xModel 10A two-position cross flame retardant terminal block)
Advantage:
1.This CBB60 run capacitor has characteristics of small volume, lightweight, low loss, strong overload ability, excellent electrical performance, reliable insulation performance, and current with good impact resistance.
2.Model 10A two-position cross flame-retardant terminal block has flame-retardant properties, which can effectively reduce the risk of fire and improve the protection of electrical equipment. The terminal block is reasonably designed to ensure a firm and reliable connection between the wire and the equipment, avoiding poor contact or looseness.
Instruction:
Capacitance is not divided into positive and negative poles and can be connected at will. High stability, good heat dissipation effect under high temperature.
NOTE: Please pay attention not to over current or over voltage when using
Specification:
Model: CBB60; Material: Polypropylene Film Plastic Shell; Lead End: 2 Wires; Tolerance: ±5%; Rated Capacity: 25uF; Climatic Category: 40/70/21; Body Size: 70x40mm/2.76x1.57inch (L*D); Shell Color: Grey; Wire Length: 135mm/5.31inch; Pack of 1Set Run Capacitor(Inchlude 1xModel 10A two-position cross flame retardant terminal block)
Advantage:
1.This CBB60 run capacitor has characteristics of small volume, lightweight, low loss, strong overload ability, excellent electrical performance, reliable insulation performance, and current with good impact resistance.
2.Model 10A two-position cross flame-retardant terminal block has flame-retardant properties, which can effectively reduce the risk of fire and improve the protection of electrical equipment. The terminal block is reasonably designed to ensure a firm and reliable connection between the wire and the equipment, avoiding poor contact or looseness.
Instruction:
Capacitance is not divided into positive and negative poles and can be connected at will. High stability, good heat dissipation effect under high temperature.
NOTE: Please pay attention not to over current or over voltage when using
