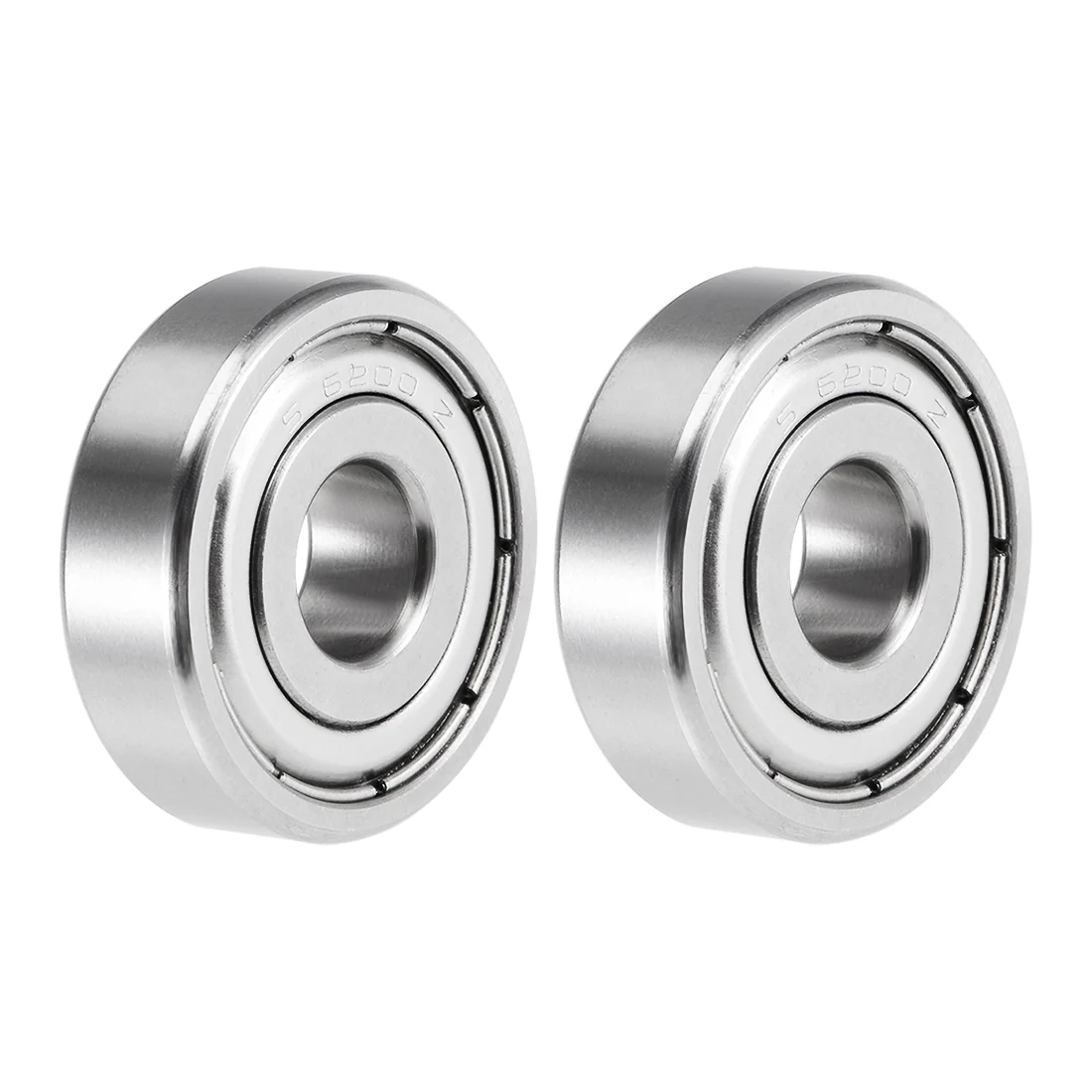

Uxcell S6200ZZ Deep Groove Ball Bearings 10mm x 30mm x 9mm Double Shielded Stainless Steel 2pcs
1 / 4
Uxcell S6200ZZ Deep Groove Ball Bearings 10mm x 30mm x 9mm Double Shielded Stainless Steel 2pcs
NOTE:
Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.Description:
- Single-row, pre-lubricated, normal accuracy.
- Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
- With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
- Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.
Selecting Guide:
Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.
Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.
Specification:
Model: S6200ZZ
Seal Type: Double Shielded
Inner Race/Outer Race Material: 440C Stainless Steel (9Cr18)
Cage Material: 304 Stainless Steel (0Cr18Ni9)
Inner Diameter (d): 10mm
Outer Diameter (D): 30mm

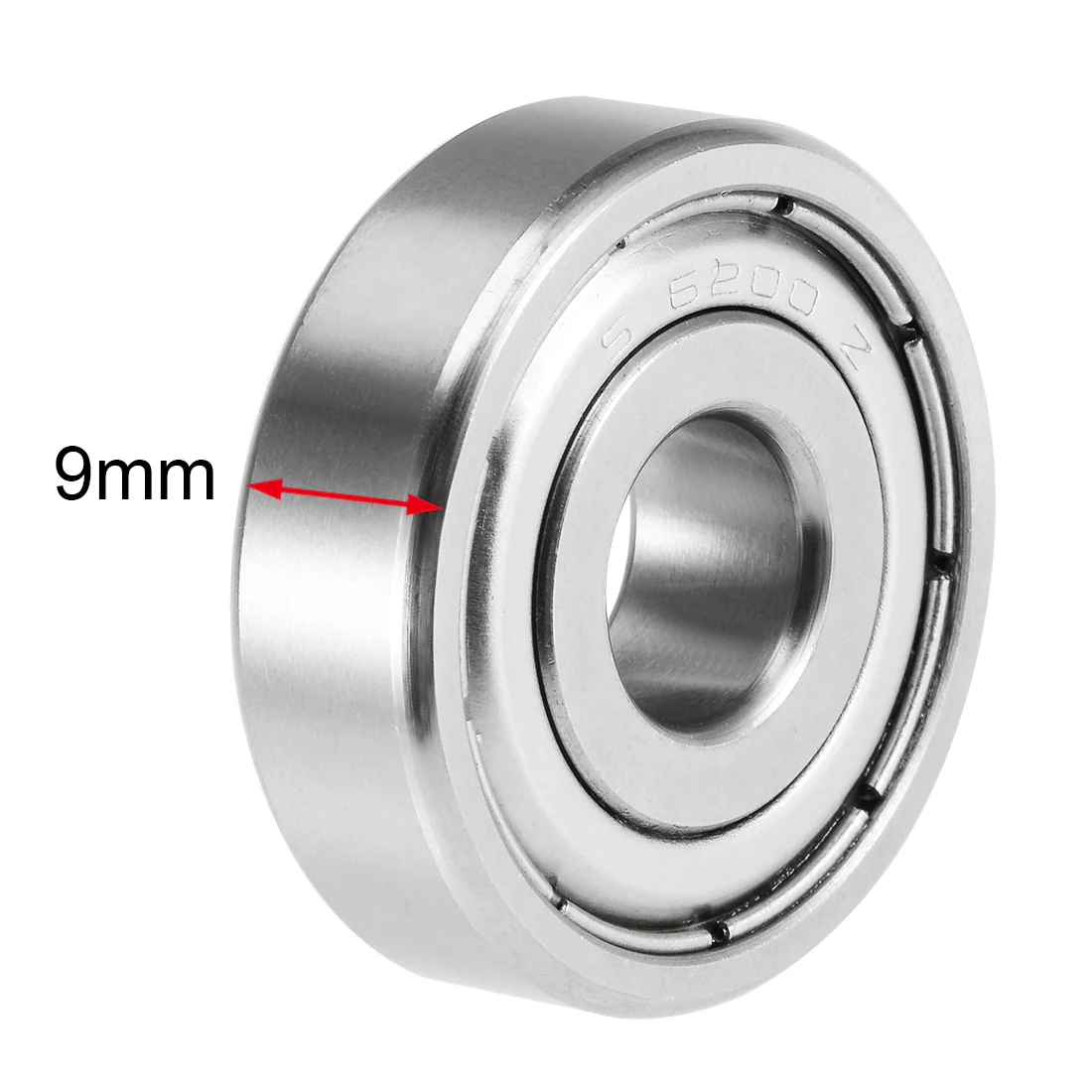

Thickness (B): 9mm
Dynamic Load Rating (Cr): 4590N
Static Load Rating (Cor): 2160N
Limiting Speed (Oil): 26100rpm
Accuracy Class: P0 (ABEC1)
Noise Level: Z2
Number of Pack: 2 pcs
$2.20
Original: $7.32
-70%Uxcell S6200ZZ Deep Groove Ball Bearings 10mm x 30mm x 9mm Double Shielded Stainless Steel 2pcs—
$7.32
$2.20Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
NOTE:
Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.Description:
- Single-row, pre-lubricated, normal accuracy.
- Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
- With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
- Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.
Selecting Guide:
Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.
Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.
Specification:
Model: S6200ZZ
Seal Type: Double Shielded
Inner Race/Outer Race Material: 440C Stainless Steel (9Cr18)
Cage Material: 304 Stainless Steel (0Cr18Ni9)
Inner Diameter (d): 10mm
Outer Diameter (D): 30mm
Thickness (B): 9mm
Dynamic Load Rating (Cr): 4590N
Static Load Rating (Cor): 2160N
Limiting Speed (Oil): 26100rpm
Accuracy Class: P0 (ABEC1)
Noise Level: Z2
Number of Pack: 2 pcs
