Uxcell 606ZZ Deep Groove Ball Bearings 6mm x 17mm x 6mm Double Shielded Chrome Steel P5(ABEC5) 5pcs
1 / 4
Uxcell 606ZZ Deep Groove Ball Bearings 6mm x 17mm x 6mm Double Shielded Chrome Steel P5(ABEC5) 5pcs
NOTE:
Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.Description:
- Single-row, pre-lubricated, normal accuracy.
- Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
- With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
- Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.
Selecting Guide:
Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.
Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.
Specification:
Model: 606ZZ
Seal Type: Double Shielded
Inner Race/Outer Race Material: Chromium Steel (GCr15)
Cage Material: Stamping Steel

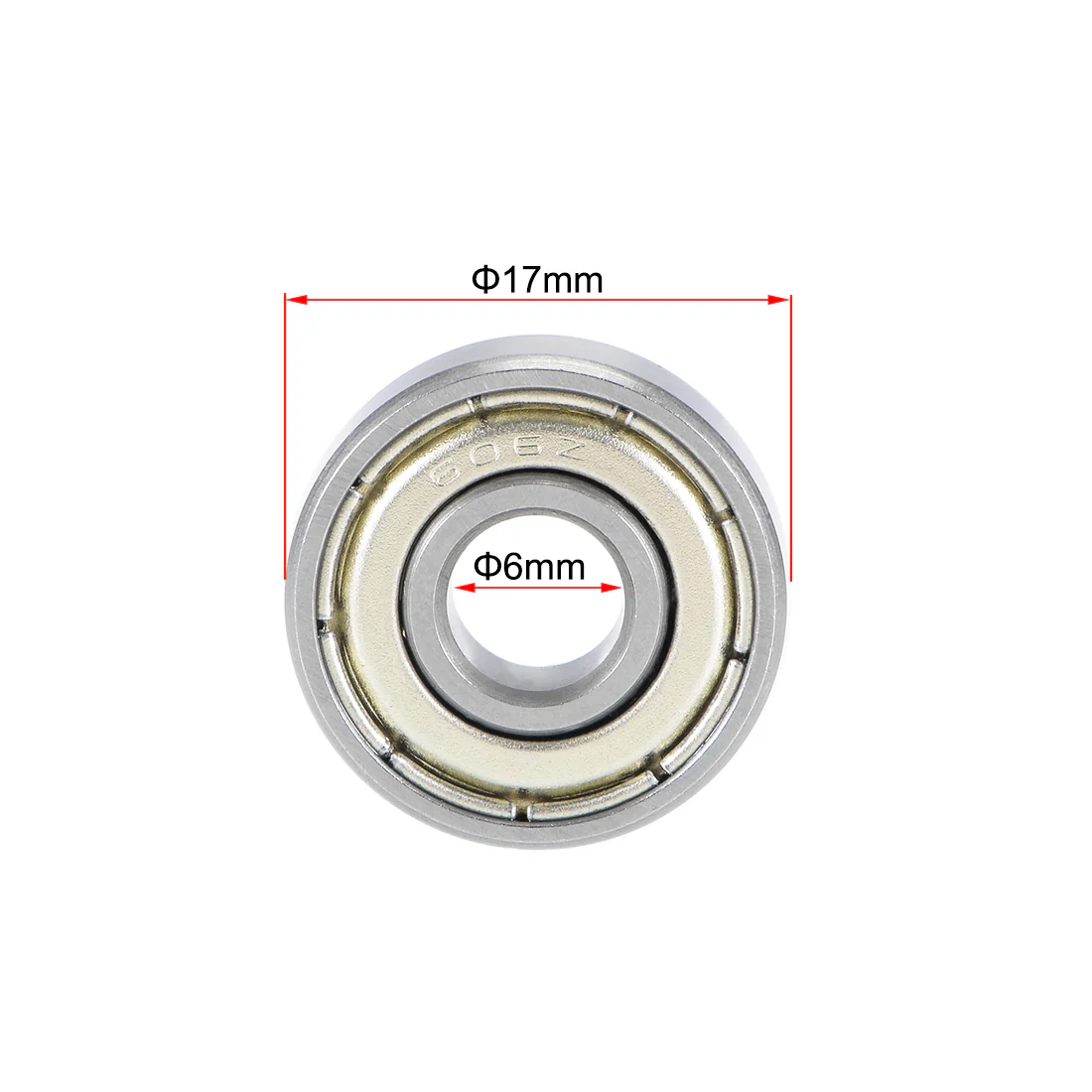

Inner Diameter (d): 6mm
Outer Diameter (D): 17mm

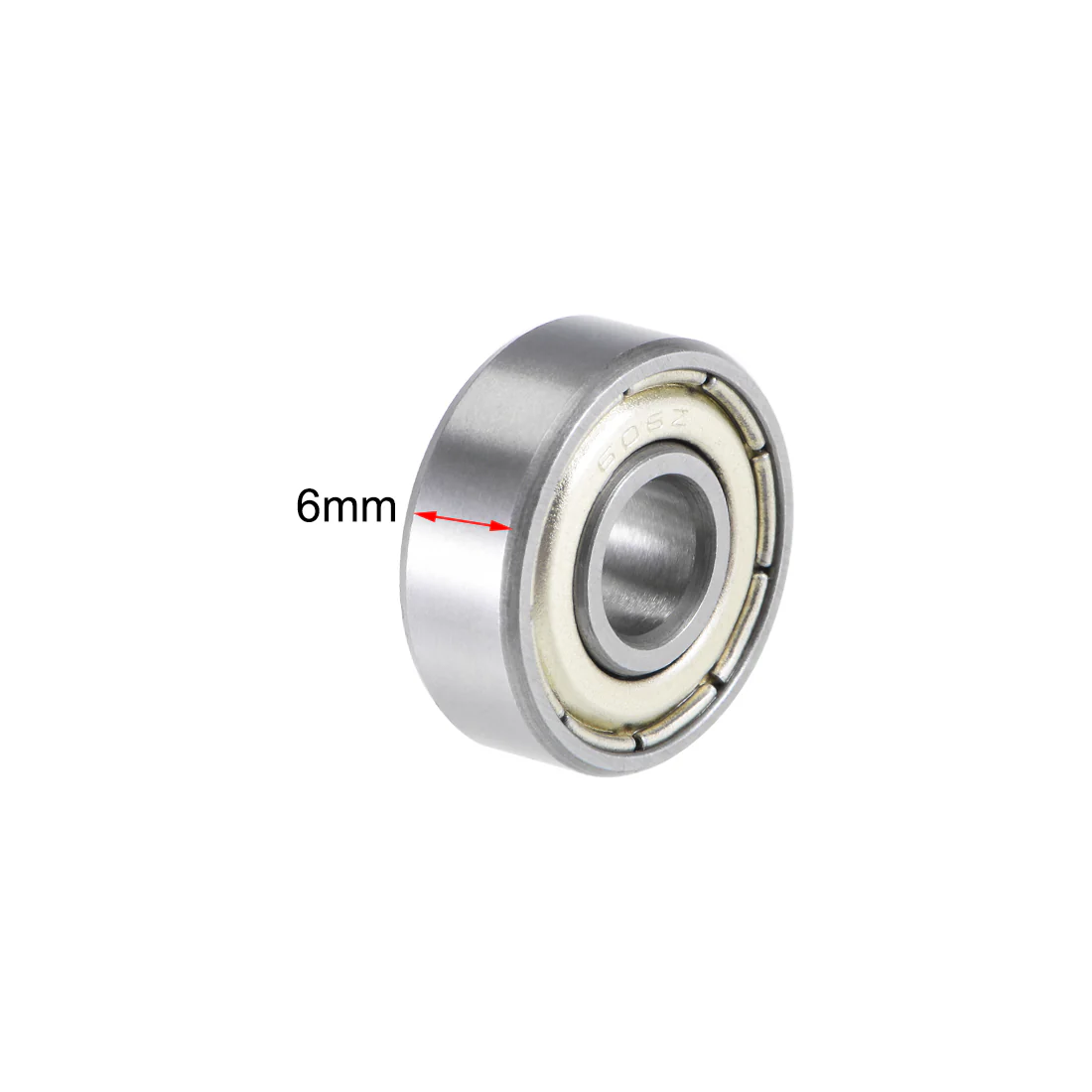

Thickness (B): 6mm
Dynamic Load Rating (Cr): 1950N
Static Load Rating (Cor): 720N
Accuracy Class: P5 (ABEC5)
Noise Level: Z2
Number of Pack: 5pcs
$3.14
Original: $10.48
-70%Uxcell 606ZZ Deep Groove Ball Bearings 6mm x 17mm x 6mm Double Shielded Chrome Steel P5(ABEC5) 5pcs—
$10.48
$3.14Product Information
